Rotary Joint

Home - Products

888.BY集团电子游戏(中国)有限公司官网

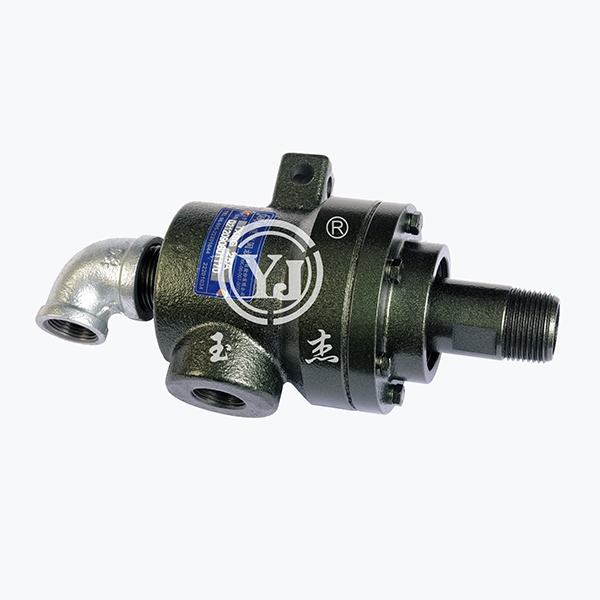

TX Rotary Joint

Model：TXSX、TXSXF
Outer pipe：Thread connection or flange connection
Feature：Spherical seal design; Tube go by special treatment; Two internal support guides; Maximum carbon guide separation; Renewable seal plate;

Technical Parameter：

Media	Steam
Max.Temperature	≤220℃
Max.Pressure	≤1.8MPa
Max.Speed	≤200rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

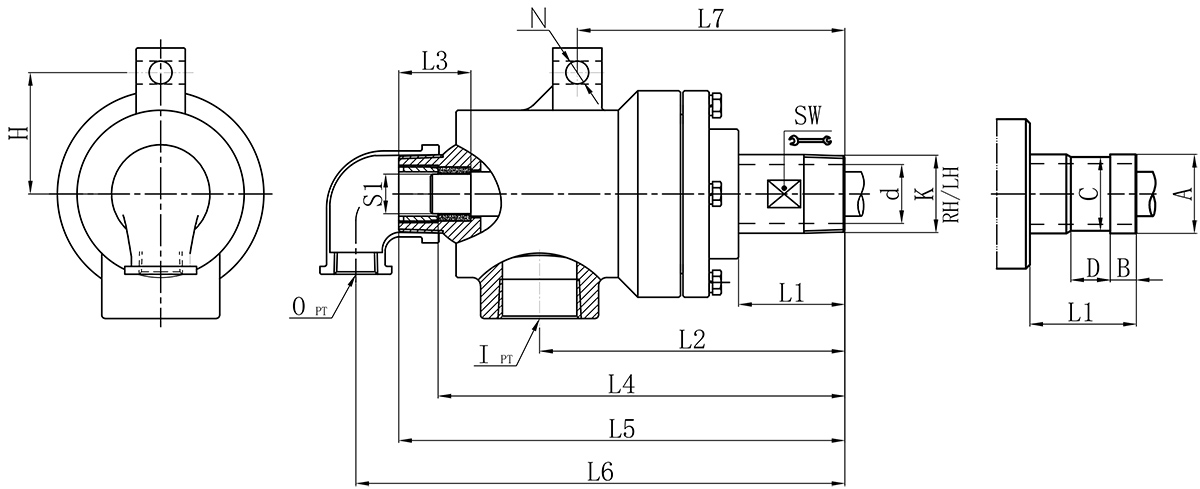

Dimensions

888.BY集团电子游戏(中国)有限公司官网

Model	K	I	O	S1	d	L1	L2	L3	L4	L5	L6	L7	L9	N	H	SW	法兰式外管尺寸比照表
Model	K	I	O	S1	d	L1	L2	L3	L4	L5	L6	L7	L9	N	H	SW	A	B	C	D
20A	R3/4"	Rc3/4"	Rc1/2"	12	18	49	141	30	193	197	210	127	40	10	56	24	26	11	24	16
25A	R1"	Rc3/4"	Rc1/2"	16	23.5	54	149	30	204	210	222	131	40	12	60	32	34	12	32	18
32A	R1-1/4”	Rc1"	Rc1/2"	20	30	57	161	20	216	239	253	140	48	14	68	39	40	13	38	20
40A	R1-1/2”	Rc1-1/4"	Rc3/4"	25	36	67	186	20	249	272	292	163	50	14	74	45	47.8	13	45	20
50	R2”	Rc1-1/2"	Rc1"	32	45	72	212	16	268	290	310	170	46	14	97	58	60	16	57	24

如属规格品外，，，，，，本公司可配合要求制作。。。。。。。。
规格尺寸若有修改，，，，，，恕不另行通知。。。。。。。。
